Working height : 13.8m

Platform height : 11.8 m

Platform Size : 2277 mm x 1120mm

Platform Load : 320kg (2 persons)

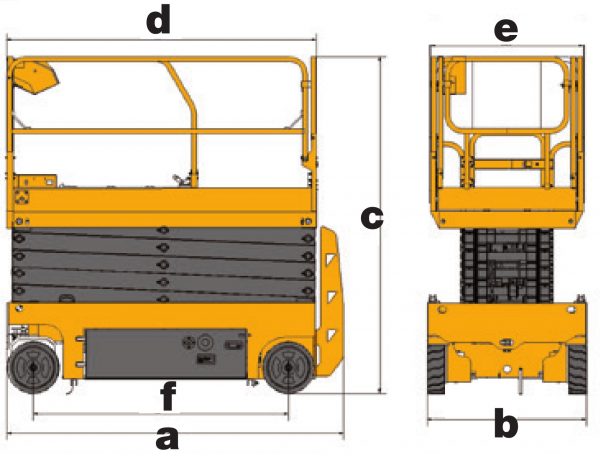

Dimention (LxWxH) : 0.00m x 0.00m x0.00m

Weight : 3100kg

Power : Electric


Categories: , , ,


New aerial work platform XG1412DC is developed by XCMG, and the work height is 11.8m, the vehicle
width is 1.17m, the rated load is 320kg, and max. gradeability is 25%. This vehicle features compact
structure, advanced performance, completed safety devices, specially suitable for construction. In
addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore,
this kind of platforms are widely applied to warehouses, factories, airports, train stations and etc.
Product Performance Advantages and Characteristics

The use of high-efficiency and energy-saving electric drive system, zero emission, low noise, and non-
marking tires are easy to be environmentally friendly and convenient for construction in closed

environments such as office buildings, hospitals, schools, etc., which can minimize the impact on the
The use of active safety protection mechanisms such as pothole protection mechanisms, equipped with
self-designed safety control systems, humanized design ideas, complete safety protection, and a wealth
of optional combinations to fully meet the multiple needs of customers for safety, reliability, and
intelligence .
The working platform can be expanded and contracted, and it has a larger working space. With a
foldable fence, it is more convenient to transport and movement.
Unique “zero turning radius” design, which can be used flexibly in narrow spaces.
Achieve a maximum load of 320kg, reaching the industry’s leading level.
The fastest traveling speed is 4.0km/h, with 25% gradeability, making driving operations easier.



  • 2 front driving wheels
  • 25% theoretical gradeability-stowed/lowered position
  • Battery charge indicator and diagnostic display
  • Manual platform lowering valve
  • Both platform and ground control panel with emergency stop button
  • Front wheel multi-disc brakes
  • Manual brake release system
  • Solid non-marking tires
  • Mobile pothole protection
  • Tilt alarm
  • Hourmeter screen
  • Lift and lower alarm
  • Horn
  • Dual flashing beacons
  • Drive alarm
  • Overload alarm



  • Platform working light
  • Air-line to platform
  • AC power to the platform
  • AC motor
  • Li-battery
