Working height : 7.8m

Platform height : 5.8 m

Platform Size : 1670mm x 740mm

Platform Load : 230kg (2 persons)

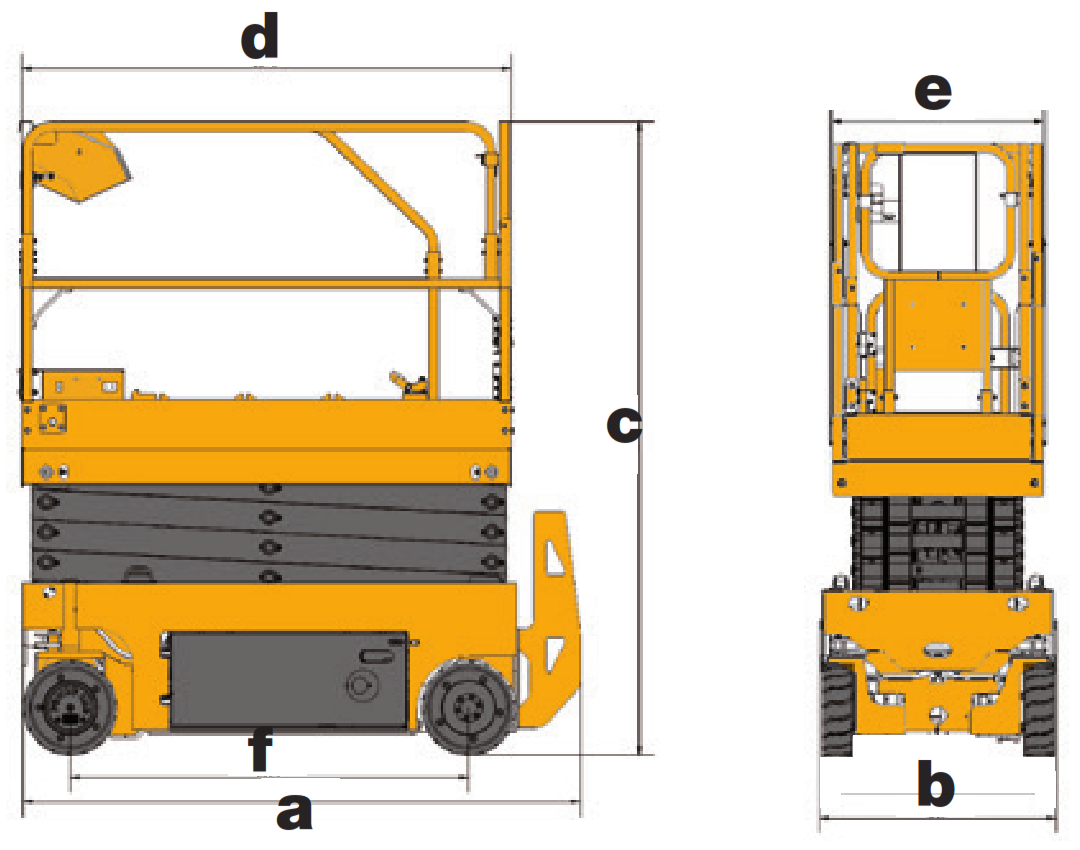

Dimention (LxWxH) : 0.00m x 0.00m x0.00m

Weight : 1550kg

Power : Electric


Categories: , , ,

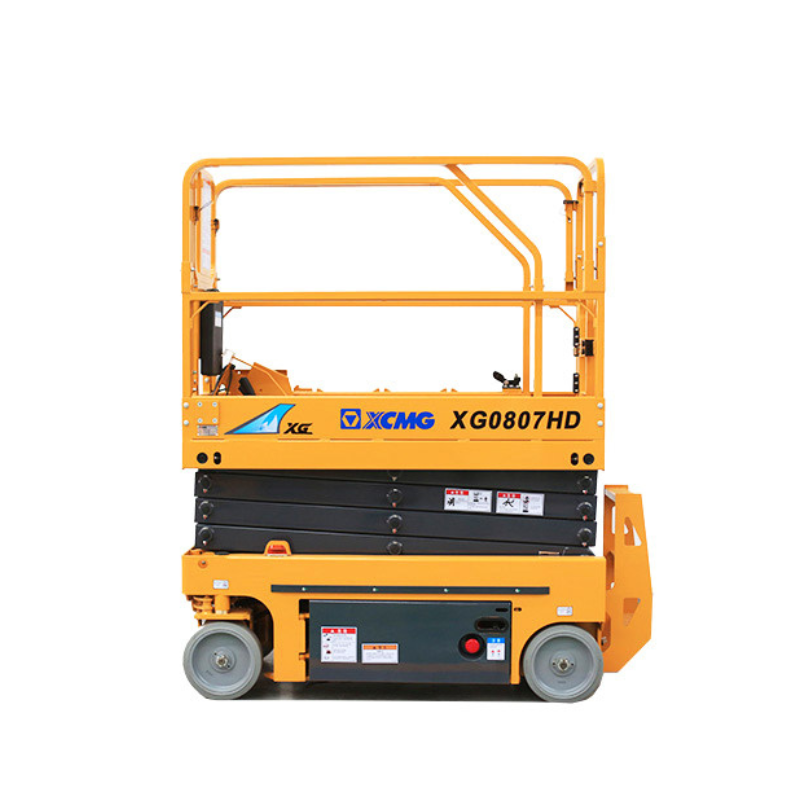

New aerial work platform XG0807HD is developed by XCMG, and the work height is 8 m, the vehicle
width is 0.76m, the rated load is 230kg, and max. gradeability is 25%. This vehicle features compact
structure, advanced performance, completed safety devices, specially suitable for construction. In
addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore,
this kind of platforms are widely applied to warehouses, factories, airports, train stations and especially
narrow space.

Product Performance Advantages and Characteristics
Effective and energy-saving electric-drive system features zero emission and low noise, together with the
traceless tires, easily enabling this machine to work in enclosed environments such as office building,
hospitals and schools and minimizing the effect on environment.
Active protective mechanism such as pit protection and the self-developed safety control system feature
the humanized design and the rich options, meeting the customer needing for safety, reliability and

Work platform is able to extend out, enlarging the work space, together with the foldable fence making
the transportation easier.
“Zero Turning Radius” is unique and enable machine to corner in narrow room.
Load capacity is 230kg, leading the industry.
Maximum traveling speed is 4km/h and gradeability is 25% make the driving much easier.



  • 2 front driving wheels
  • 25% theoretical gradeability-stowed/lowered position
  • Battery charge indicator and diagnostic display
  • Manual platform lowering valve
  • Both platform and ground control panel with emergency stop button
  • Rear wheel multi-disc brakes
  • Manual brake release system
  • Solid non-marking tires
  • Mobile pothole protection
  • Tilt alarm
  • Hourmeter screen
  • Lift and lower alarm
  • Horn
  • Dual flashing beacons
  • Drive alarm
  • Overload alarm



  • Platform working light
  • Air-line to platform
  • AC power to the platform
  • AC motor
  • Li-battery
