Description
THE ULTIMATE COMPACT PLATFORM

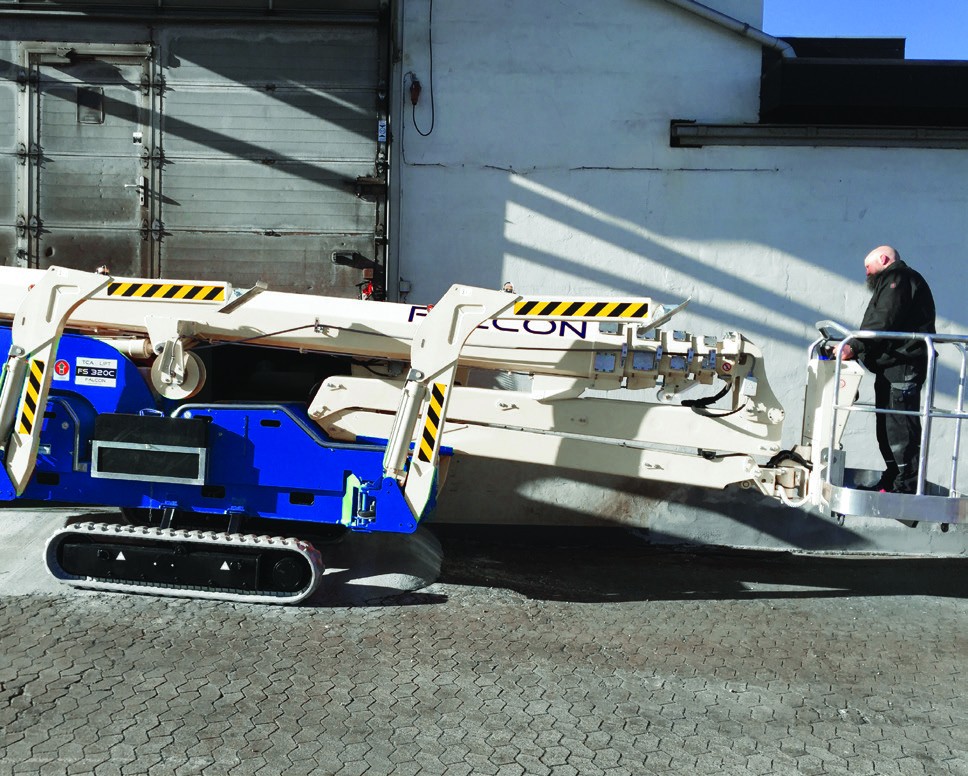

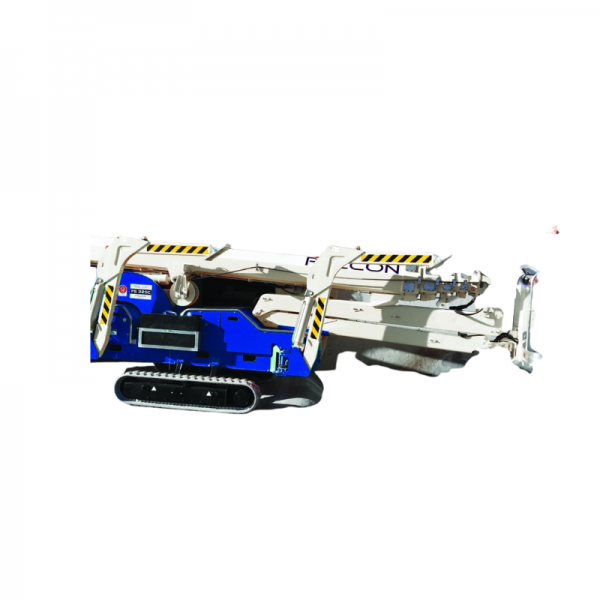

The Falcon Spider Atrium Lift is an original Falcon Spider Lift with market leading features. The Falcon
Spider Atrium Lift was invented at first in the 1970’s, and developed ever since. The Falcon Spider
Atrium Lift Falcon 320 Vario is very applicable in matters of:
- Facility management
- Atrium access
- Narrow access
- Best quality & safety
- Double jib system
- Easy transport & propelling
- Low weight & ground pressure
- Need for flexible outrigger
- Limited setup space
- Power – Bi-energy Hybrid
The Falcon Spider Atrium Lift is capable of passing through a door opening a mere 0.8 m wide and 1.98

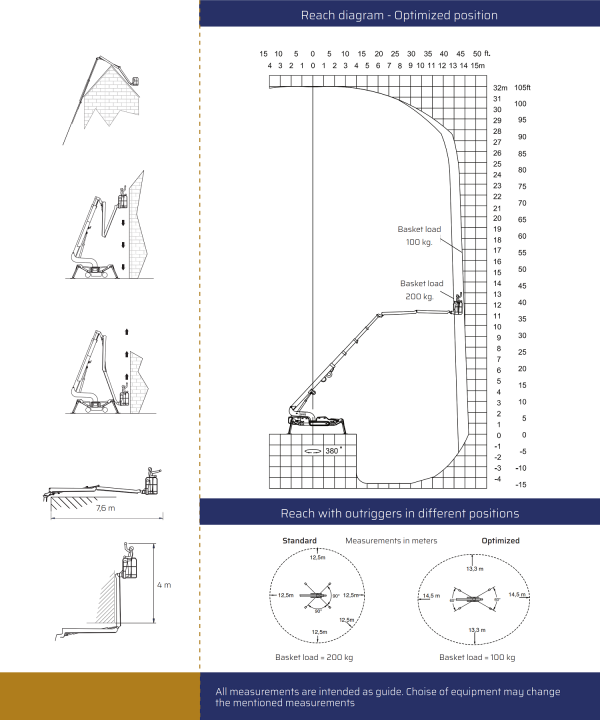

m high. Further details on The Falcon Spider Atrium Lift Falcon 320 Vario is mentioned below, or you can
click to download the full datasheet on this page also.
STANDARD EQUIPMENT :
- Automatic stability & outreach control
- Computer controlled (can-bus)
- Proportional control of all functions
- Self-propelled
- Battery powered with charger 180 Ah
- Double link-arm system
- 375° turret rotation, with integrated stop
- Individual setting of each outrigger
- Electronic checking of the power system (PLC)
- Manual pump system for emergency lowering
- Ability to self-load onto trucks or trailers
- Hight adjustable crawlers
- Adjustable crawlers 1,25-1,58 m
- Minimum width only 1,25 m
- Space for tools etc. in basket
- Storage room with lock in chassis
- Diesel engine Kubota 3 cyl. 21.7 kW
- Wireless remote control of all functions
- Service tool (Remote access via laptop)
- Non marking crawlers
- Slope alarm
OPTIONS :
- +/- 90 ° basket rotation
- 220V AC power supply in the basket
- Air/water supply in the basket
- Sensor system on basket
- 220V AC direct powered electro motor
- Extra batteries
- Autosetting/levelling
- Special outrigger footplates
- Basket in various sizes
- Special colour
- Height control switch
- GSM module for remote access and monitoring
- Anti entrapment device
- Cover
