HAULOTTE - VERTICAL MASTS - STAR 10

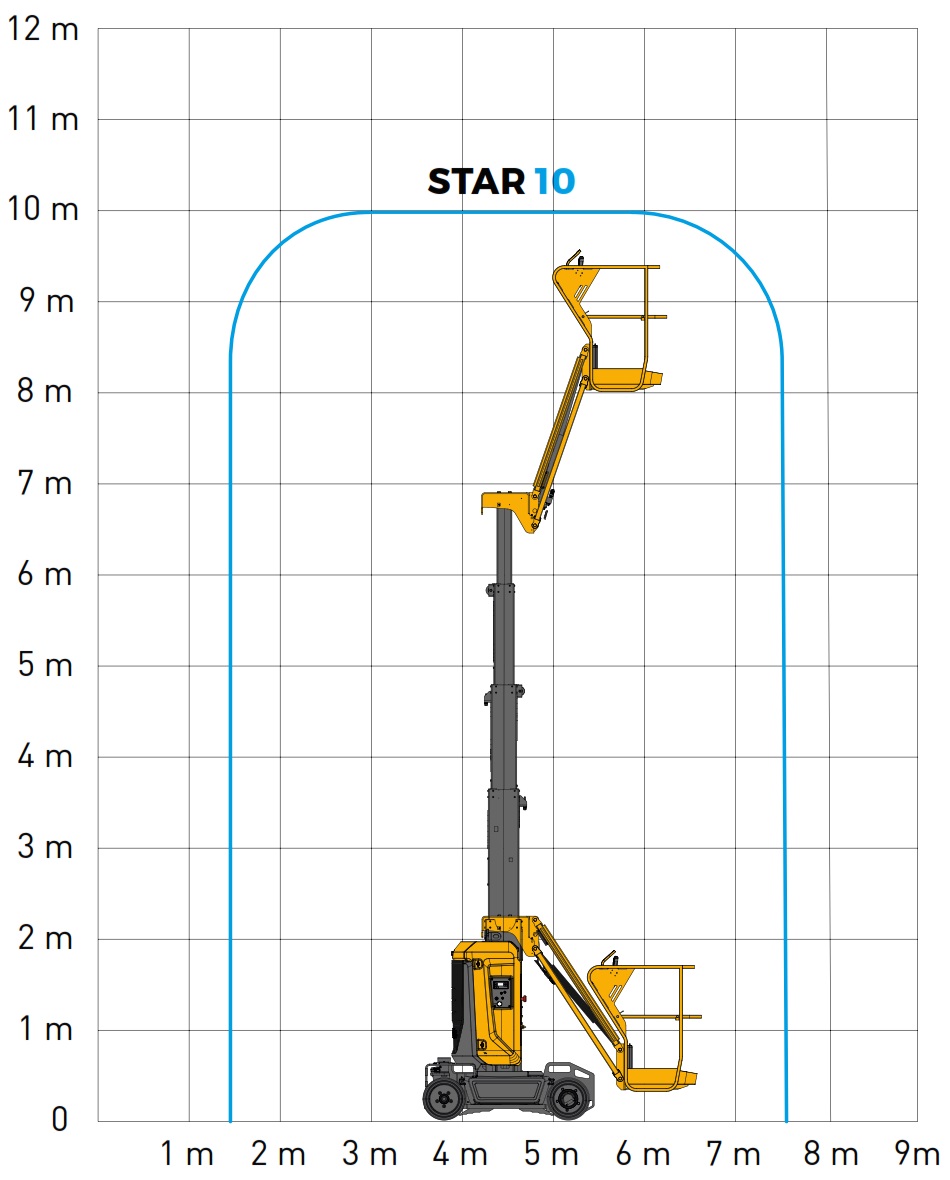

Working height : 10 m
Platform height : 8 m
Horizontal outreach : 3 m
Lift capacity – inside : 200 kg (2 persons)
FEATURES :
- Haulotte Activ’Energy Management takes care of your batteries
- Haulotte Activ’Screen (onboard diagnostic)
- Maintenance free brushless AC motors
- Minimal maintenance & downtime
- 3 m outreach vertical jib
- Zero tail swing
- Progressive electric drive AC motors
- Optimal agility in confined working areas
- Longer life time
- Unbreakable hoods in composite material
- Durability multiplied by 3 on pins, bushes, non-painted parts and fastening hardware
- Smart transportability
- Versatile and effective transport solutions with forklift tine pockets
- 25 % gradeability to easily climb truck ramps
- Almost 0 battery maintenance : automatic & centralized waterfilling system
STANDARD EQUIPMENT :
- Haulotte Activ’Energy Management: Smart CAN charger
- 24 V – 250 Ah traction batteries
- 24 V electric drive brushless AC motors
- Brake release
- Non-marking tires
- 2 rear driving wheels
- 2 front steering wheels
- Passive potholes
- Towing hooks and lifting eyes
- Forklift tine pockets
- Automatic centralized battery filling
- On-board diagnostic tool Haulotte Activ’Screen
- Battery charge indicator
- Hourmeter
- Horn
- Emergency stop buttons at cage and ground level
- Load controller in the platform
- Emergency hand pump
- 2 control stations at cage and ground level
- 2 rings in the platform for safety harnesses
- Travel alarm
- Drop bar entry
OPTIONS :
- Biodegradable oil
- Hydraulic oil for cold countries
- Air line in platform
- Power line in platform
- Flashing light
- Working light
- Haulotte Activ’Shield Bar
- Swing door entry gate
- Maintenance-free batteries
- Telematics ready
