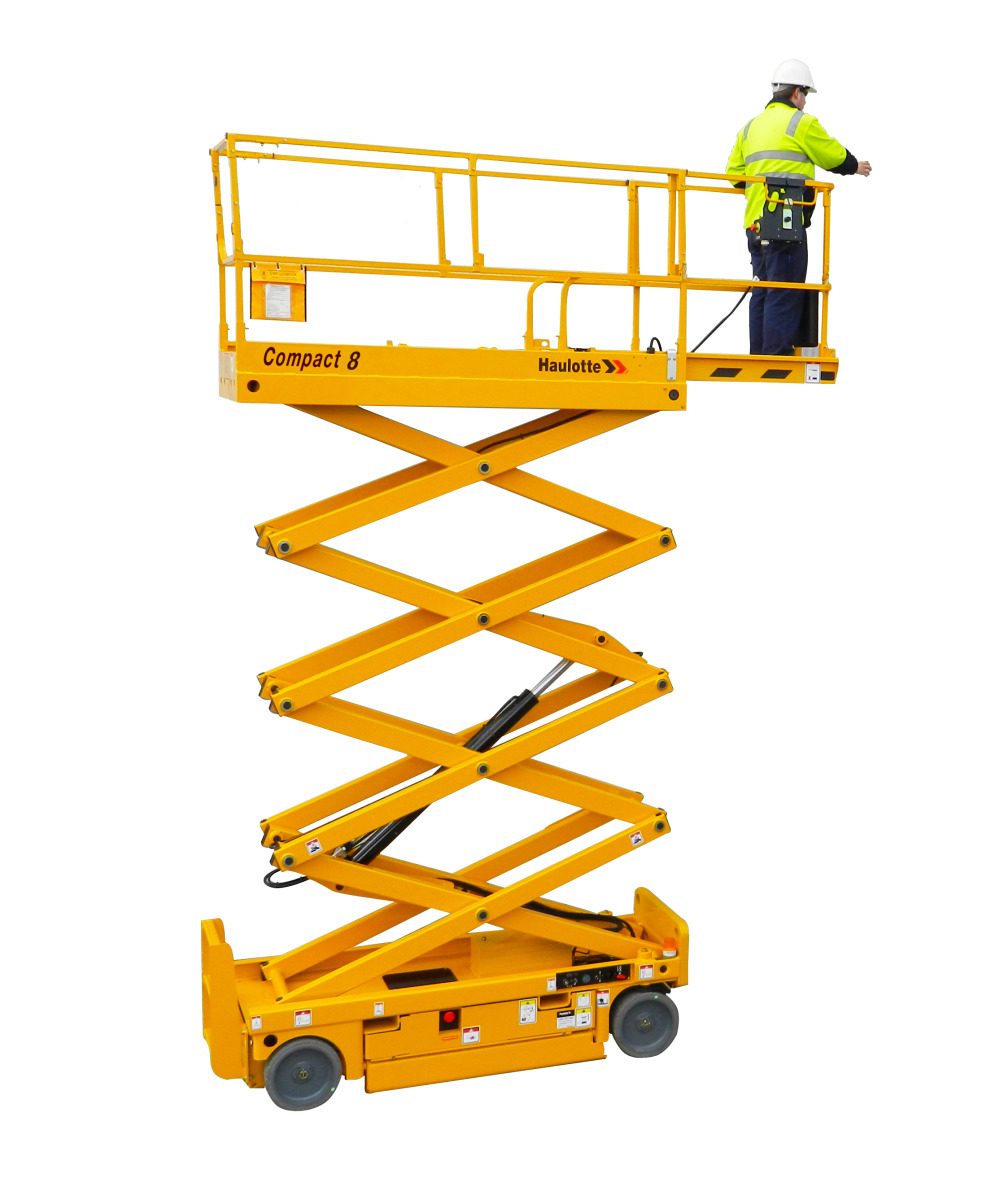

HAULOTTE - SCISSOR LIFTS - COMPACT 8
Working height : 7.77 m
Platform height : 5.77 m
Platform length : 1.72 m
Lift capacity – inside : 350 kg (2 persons)
FEATURES :
- 2 rear driving wheels
- 25% theoretical gradeability-stowed/lowered position
- Battery charge indicator and diagnostic display for faults
- Manual platform lowering valve
- Both platform and ground control panel with emergency stop button
- Rear wheel multi-disc brakes
- Manual brake release system
- Solid non-marking tires
- Mobile pothole protection
- Tilt alarm
- Hourmeter screen
- Lift and lower alarm
- Horn
- Dual flashing beacons
- Drive alarm
- Overload alarm
STANDARD EQUIPMENT :
- Pothole guards
- Battery charge indicator
- Proportional lift and drive
- Folding handrails (C 10N)
- Swing out component tray
- Battery charger with automatic stop
- Solid non-marking tyres
- Free wheeling device
- Tilt controller
- Load Management System in the platform
- Manual platform lowering valve
- Integrated forklift pockets
- Towing hooks
- Horn
- Hourmeter
- Removable control box in platform
- 24 V DC motor
- 2 front steering & driving wheels
OPTIONS :
- Flashing light
- Travel alarm
- Working light
- Power to platform
- Biodegradable hydraulic oil
- Folding guardrails (C 8)
- Centralised battery filling
- Telematics ready
